Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32"

Free Shipping!
BRAND: Wichard Marine
SKU: USB-97631
MPN:
SHIPS FROM: Bayville, NJ

Price:
Sale price$71.04 Regular price$106.56
In stock, 4 units

Description

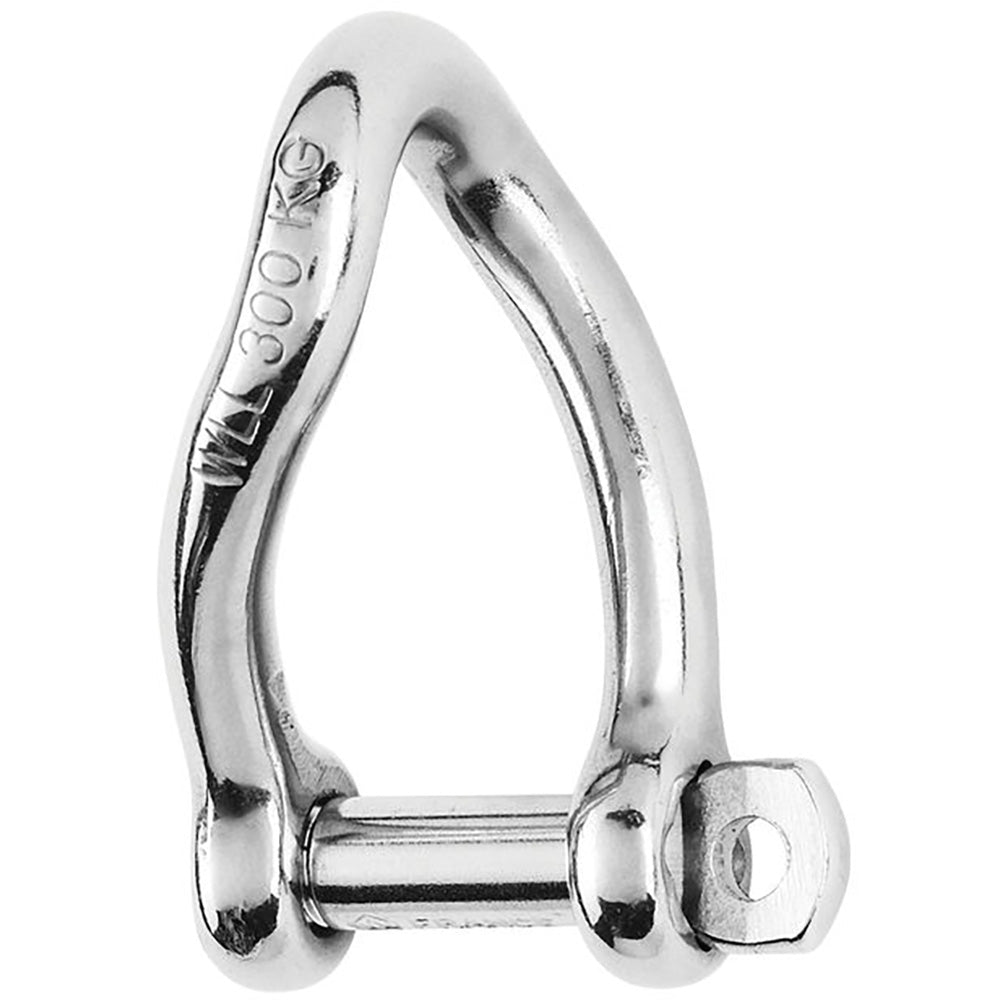

Self-Locking Twisted Shackle - Diameter 10mm - 13/32"

Features:

  • Self-locking twisted shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Perfect for applications where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 3170 / (kg) 1440
  • Breaking load: (lb) 9920 / (kg) 4500
  • Weight: (lb) 0.28 / (g) 127

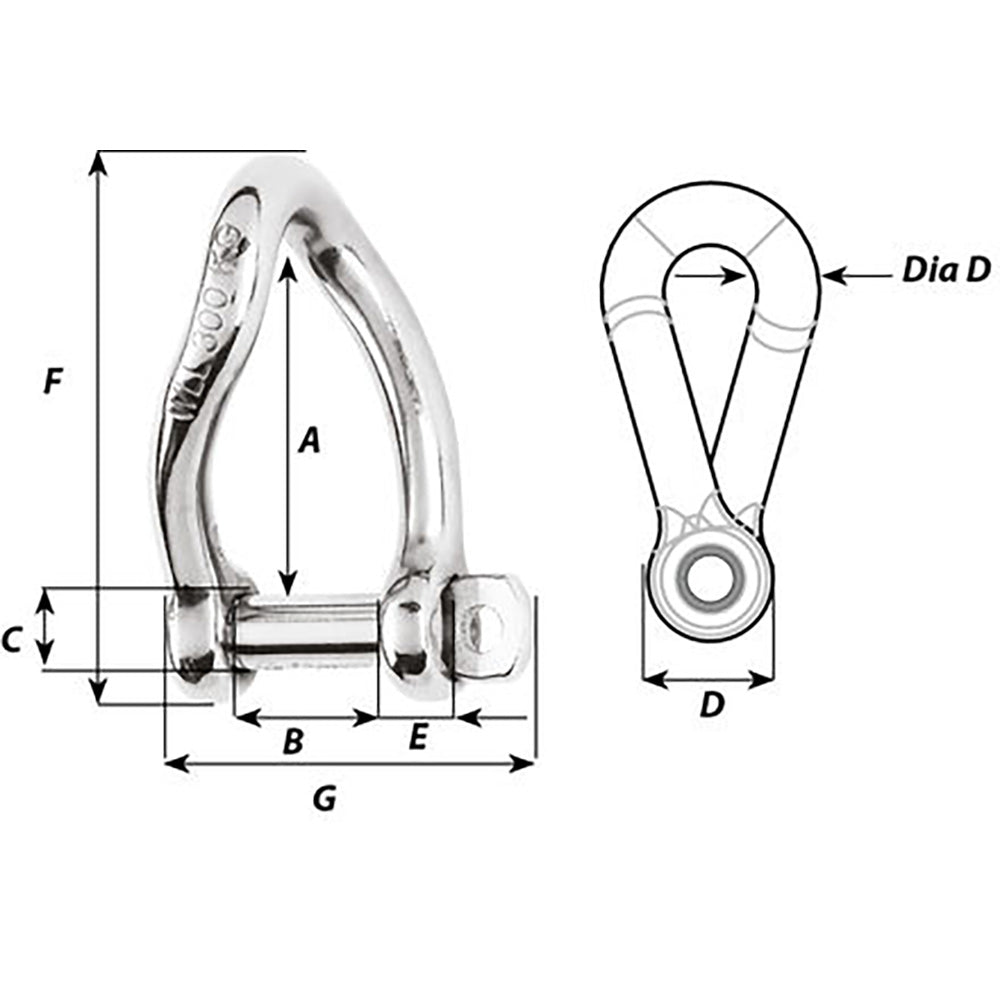

Dimensions:

  • A: (inch) 1 31/32" / (mm) 50
  • B: (inch) 25/32" / (mm) 20
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 3/4" / (mm) 19
  • D diameter: (inch) 25/64" / (mm) 10
  • E: (inch) 23/64" / (mm) 9
  • F: (inch) 2 29/32" / (mm) 74

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
