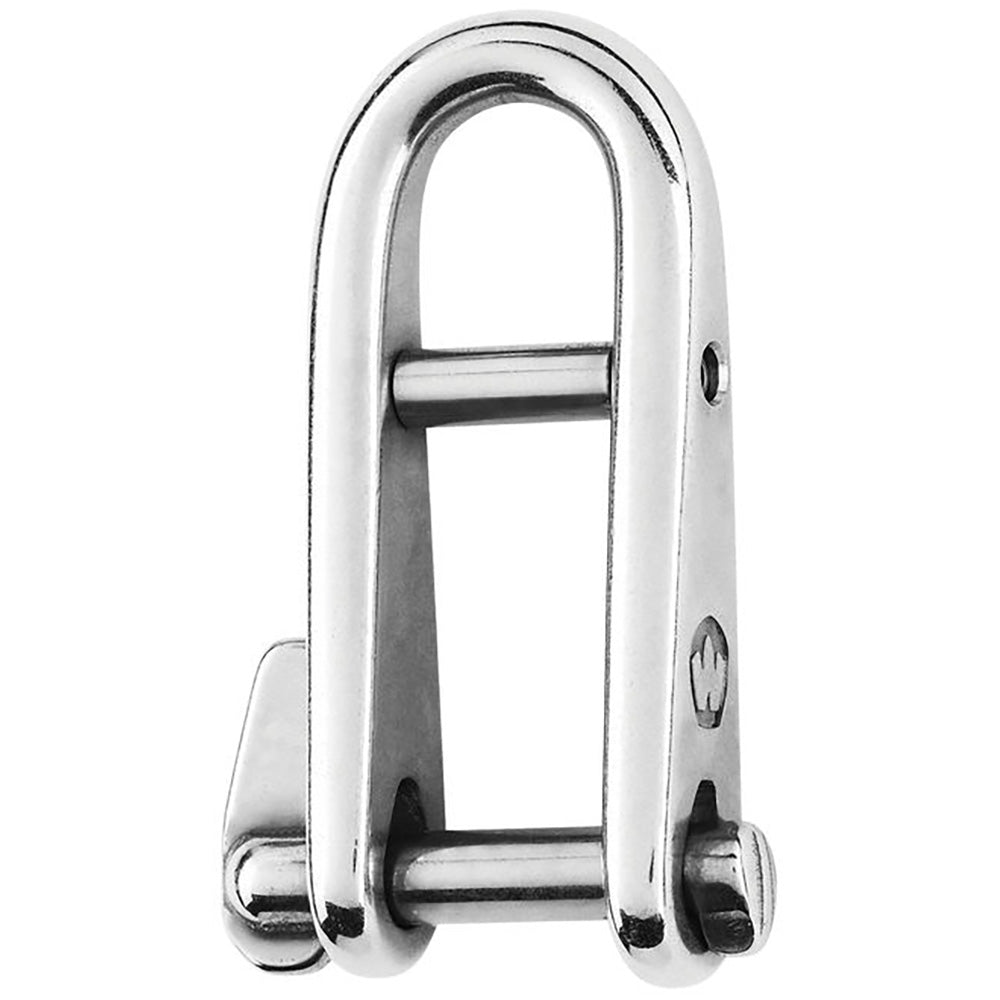

Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter

Free Shipping!
BRAND: Wichard Marine
SKU: USB-97739
MPN:
SHIPS FROM: Bayville, NJ

Price:
Sale price$58.68 Regular price$88.02
In stock, 4 units

Description

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1050 / (kg) 480
  • Breaking load: (lb) 3300 / (kg) 1500
  • Weight: (lb) 0.068 / (g) 31

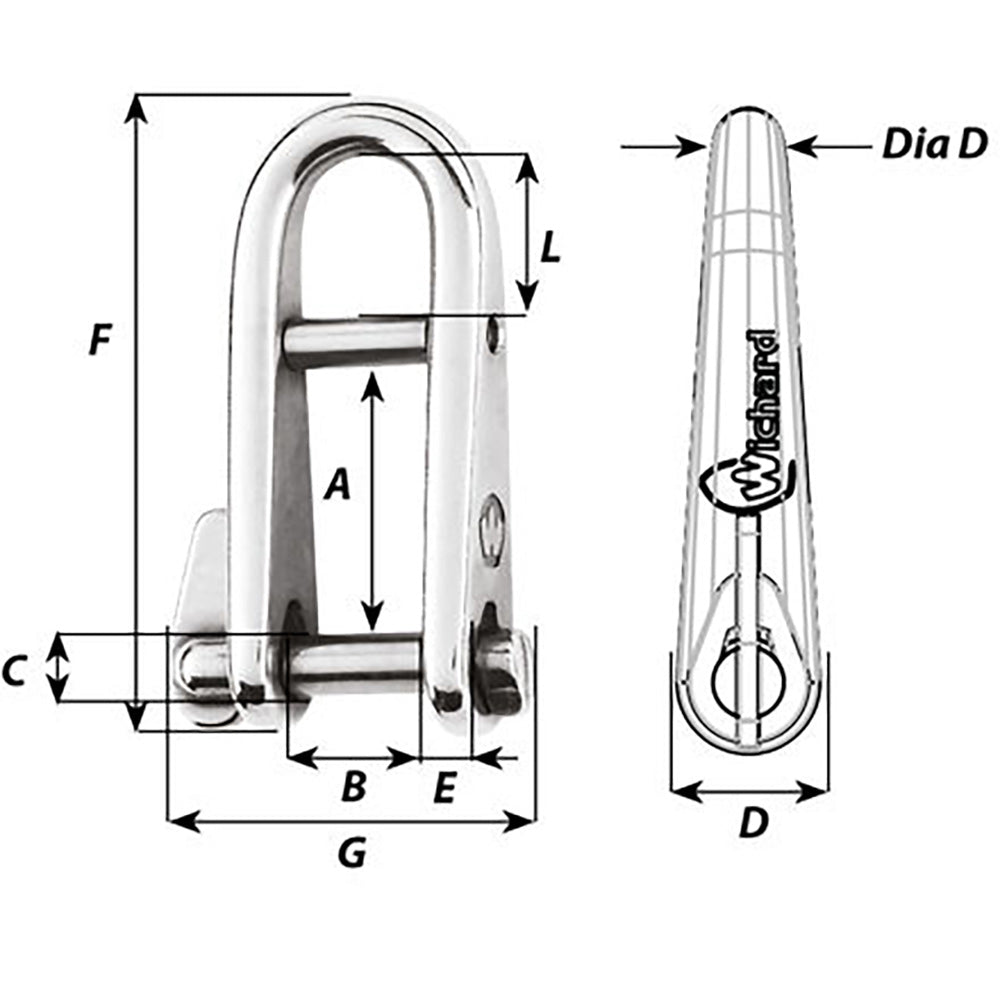

Dimensions:

  • A: (inch) 1 29/64" / (mm) 37
  • B: (inch) 33/64" / (mm) 13
  • C: (inch) 13/64" / (mm) 5
  • D: (inch) 7/16" / (mm) 11
  • E: (inch) 5/32" / (mm) 4
  • F: (inch) 1 59/64" / (mm) 49
  • G: (inch) 1 7/32" / (mm) 31
  • L: (inch) 15/32" / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
